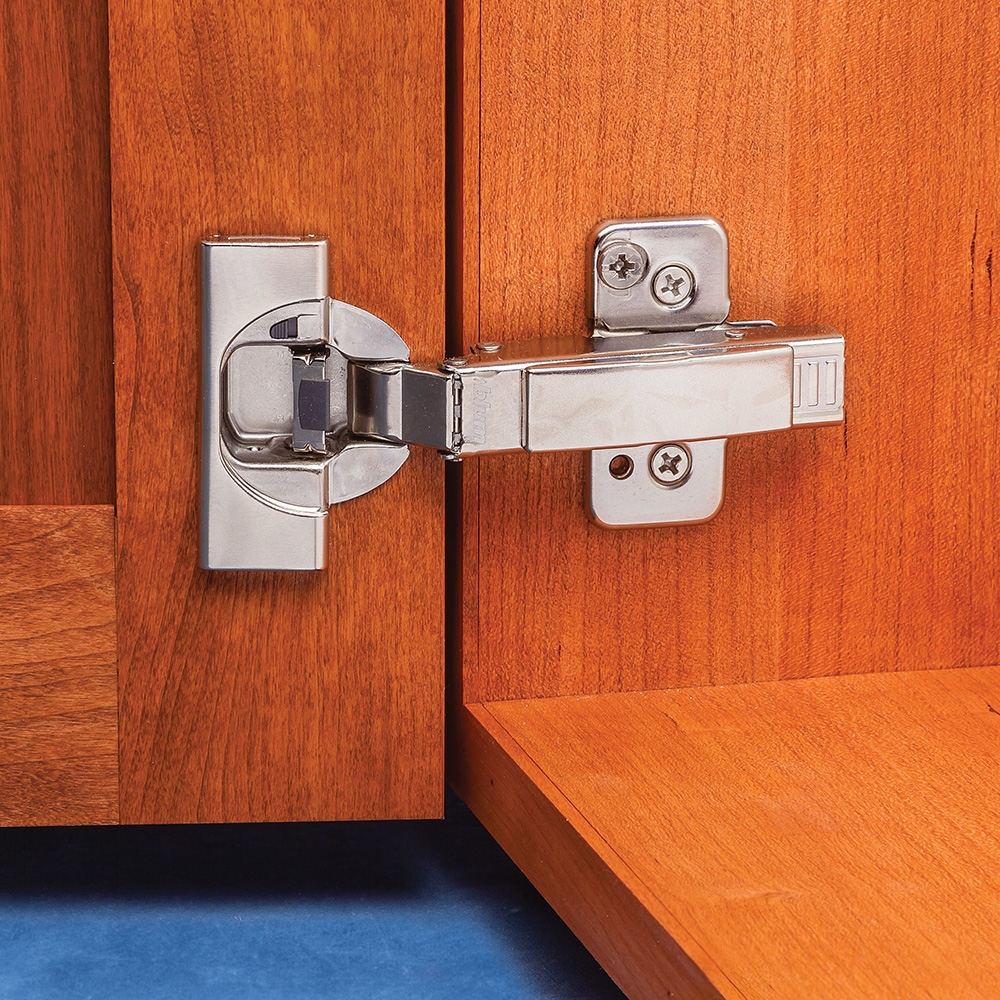

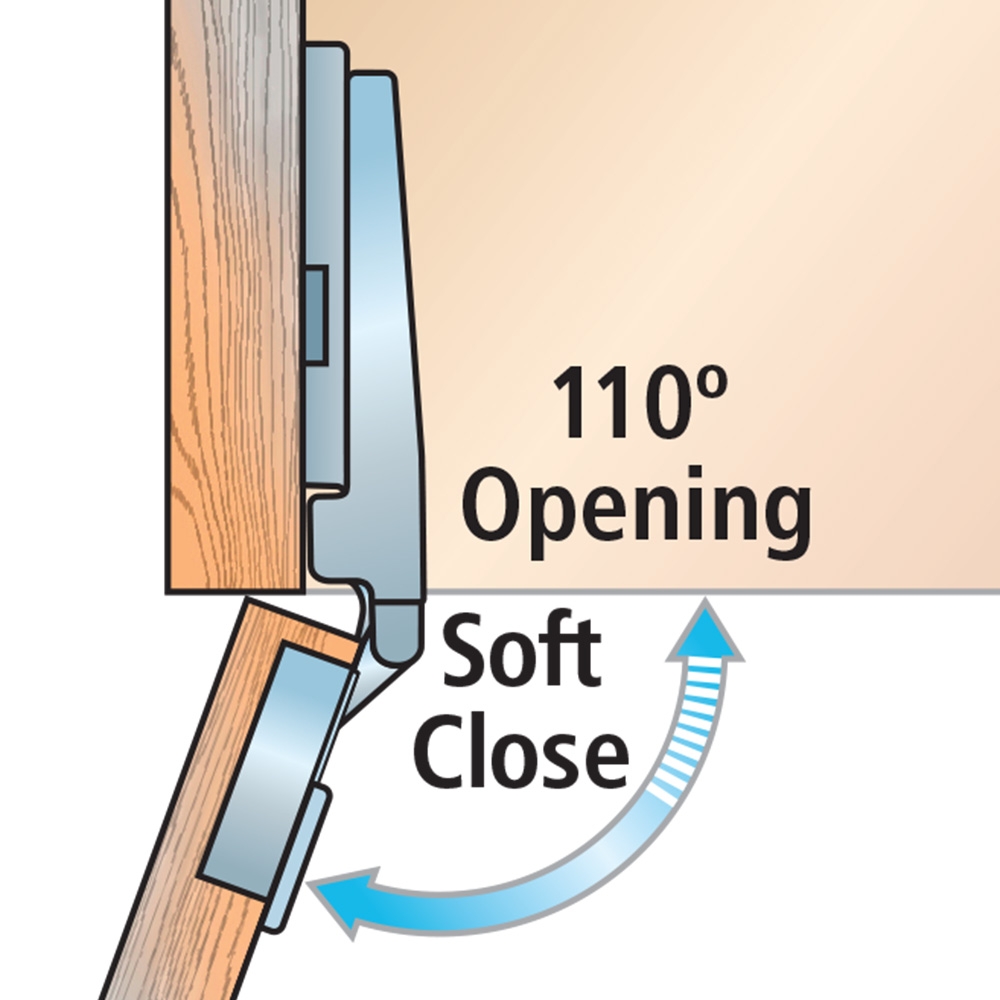

Virtually invisible damping mechanism in the much-loved Clip Top hinge design. 3-way adjustability and clip-on ease of the original. Each hinge has a switch for turning the soft-close feature on or off. Smooth, whisper-soft closing action paired with an equally graceful appearance make the new BLUMotion hinges a standout for visual and tactile aesthetics. No more rattling glasses and banging cabinet doors and no bulky apparatus on the outside of the hinge. Switching off one hinge on smaller, lighter doors allows the same soft-close speed throughout your kitchen. Self-lubricating with a full 110° opening angle. Compatible with doors up to 1" thick. Hinges include sleek screw caps as well as hinge plates for various overlays. If existing hole is less than 13mm deep, hinge cup spacers are available that allow retrofitting without reboring (sold separately, #35245). Angle restriction clips (sold separately, #31075) are also available to prevent doors from colliding with adjacent walls and cabinets when opened. Due to the new hinging action of the soft-close hinge, the original Clip Tops and Soft-Close Clip Tops may not be combined in the same door. Sold as a pair
Soft-Close Clip Top Hinge Kit Features:
Blumotion soft-close

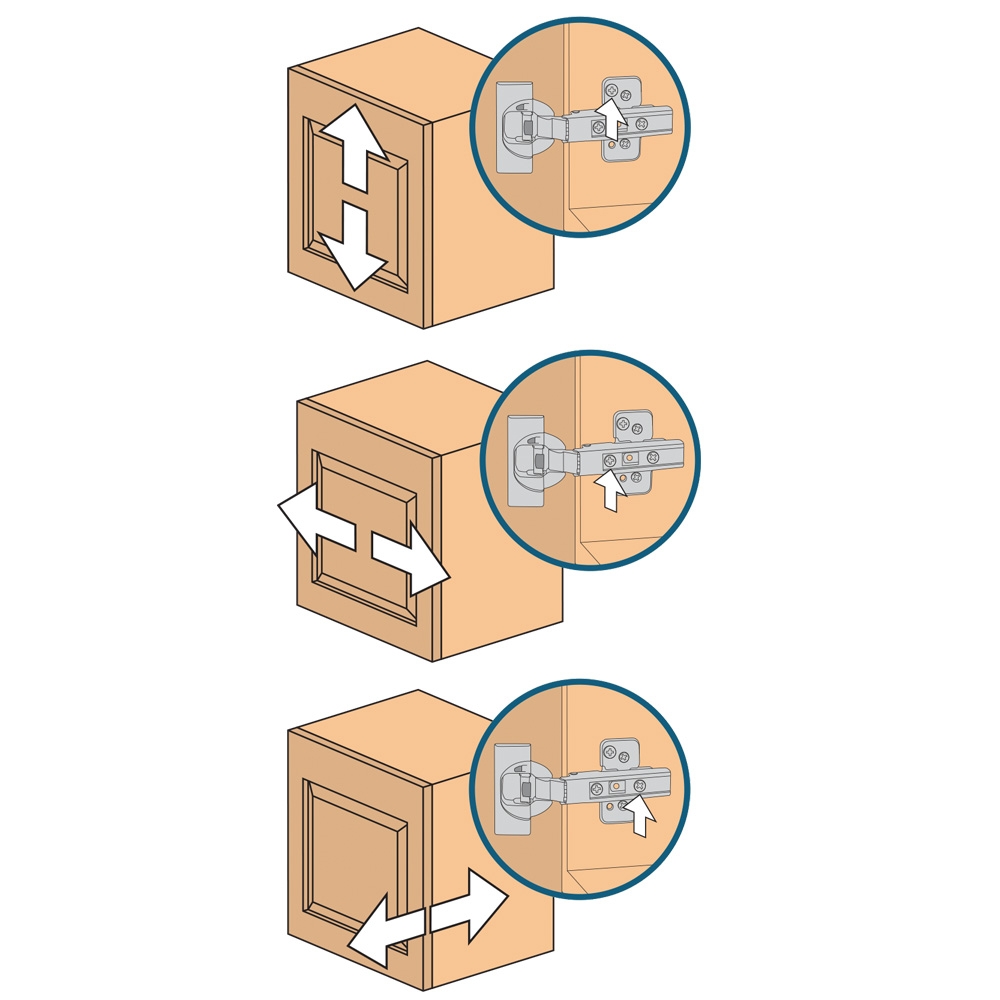

3-way adjustability
Clip-on convenience
Hinge covers included
For frameless cabinets
About The Rockler Advantage:
In one convenient package, Rockler Advantage hinge kits include all the hardware needed to hang an average-sized cabinet door: the hinges themselves, the required mounting plates for clip-on installation, sleek cover caps for a streamlined look, all required screws, plus detailed instructions for mounting. This makes it easy to order, and easy to install, cutting out the time and expense of hunting it all down online or at the hardware store.
Related Products
We recommend using our JIG IT® Deluxe Concealed Hinge Drilling System with the JIG IT® Hinge Plate Template A to make installation of these hinges accurate and easy.
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.

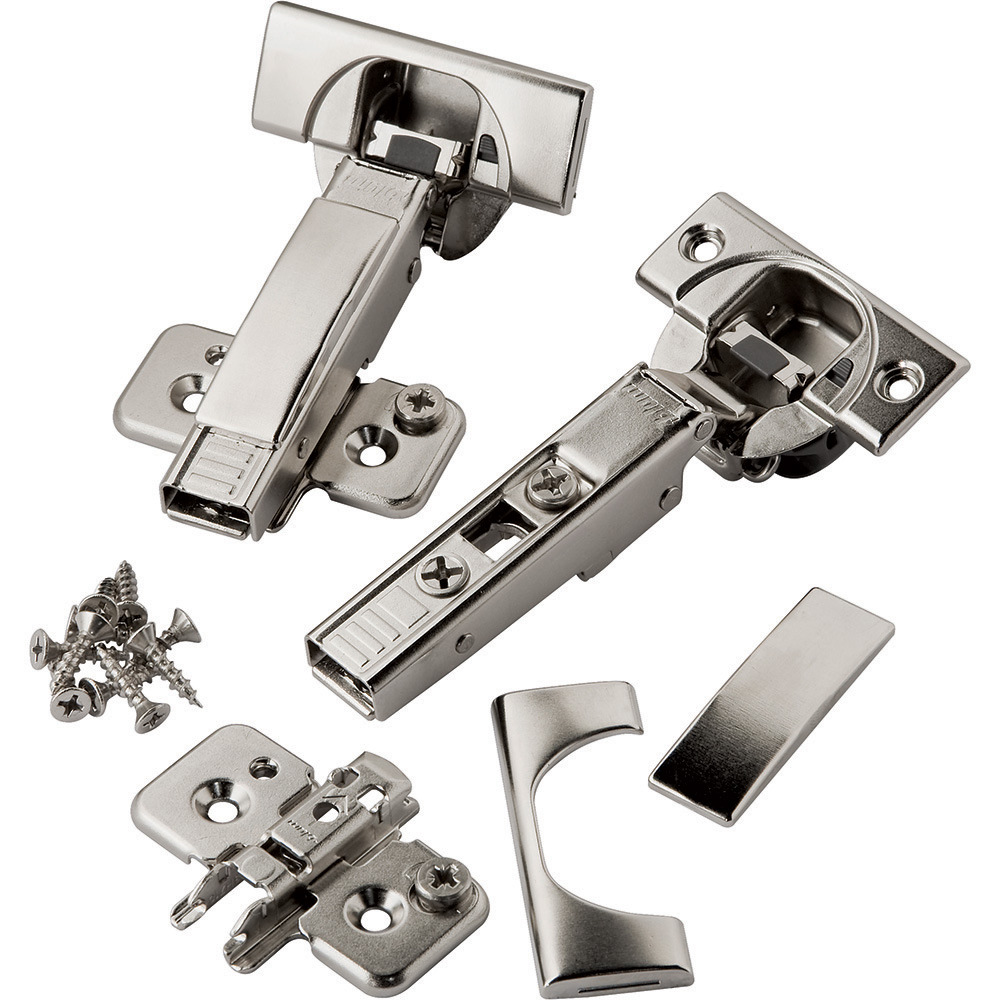

(1) Pair of Blum 110° Soft-Close BLUMotion Clip Top Overlay Hinges for Frameless Cabinets (1) Pair of ''clip-on'' mounting plates (1) Pair of sleek metal caps to cover hinge arm adjustment screws (1) Pair of sleek metal caps to cover cup mounting screws (1) Complete pack of mounting screws (1) Set of online installation instructions (see link)
(1) Pair of Blum 110° Soft-Close BLUMotion Clip Top Overlay Hinges for Frameless Cabinets (1) Pair of ''clip-on'' mounting plates (1) Pair of sleek metal caps to cover hinge arm adjustment screws (1) Pair of sleek metal caps to cover cup mounting screws (1) Complete pack of mounting screws (1) Set of online installation instructions (see link)
Brand Blum
More Information
Brand
Blum
Weight
0.50
Tech Spec
Style: Long Arm European
Cabinet Style: Frameless

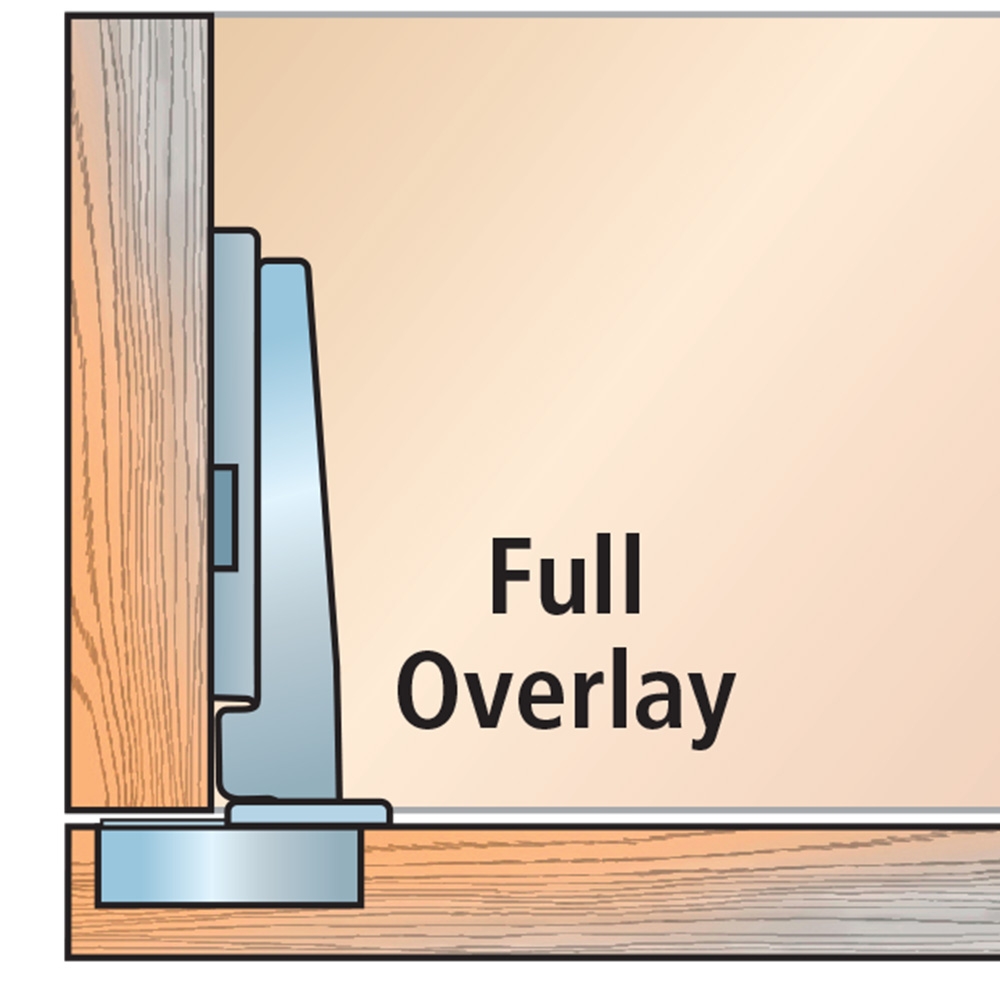

Overlay: Multiple Options
Opening: 110 Degree
Closing Option: Soft Close
Finish: Nickel
Tab: 5mm
Cup Diameter: 35mm (1-3/8")
Cup Depth: 13mm
Minimum Door Thickness: 16mm (.63")
Maximum Door Thickness: 26mm (1")
Adjustment: 3-way Cam
Gap: 1.5mm
Clip-on: Yes
Minimum Reveal: 1.1mm
Hinge Type: Euro hinge, European hinge, concealed hinge
