Rockler Ellipse/Circle Cutting Jig for Routers

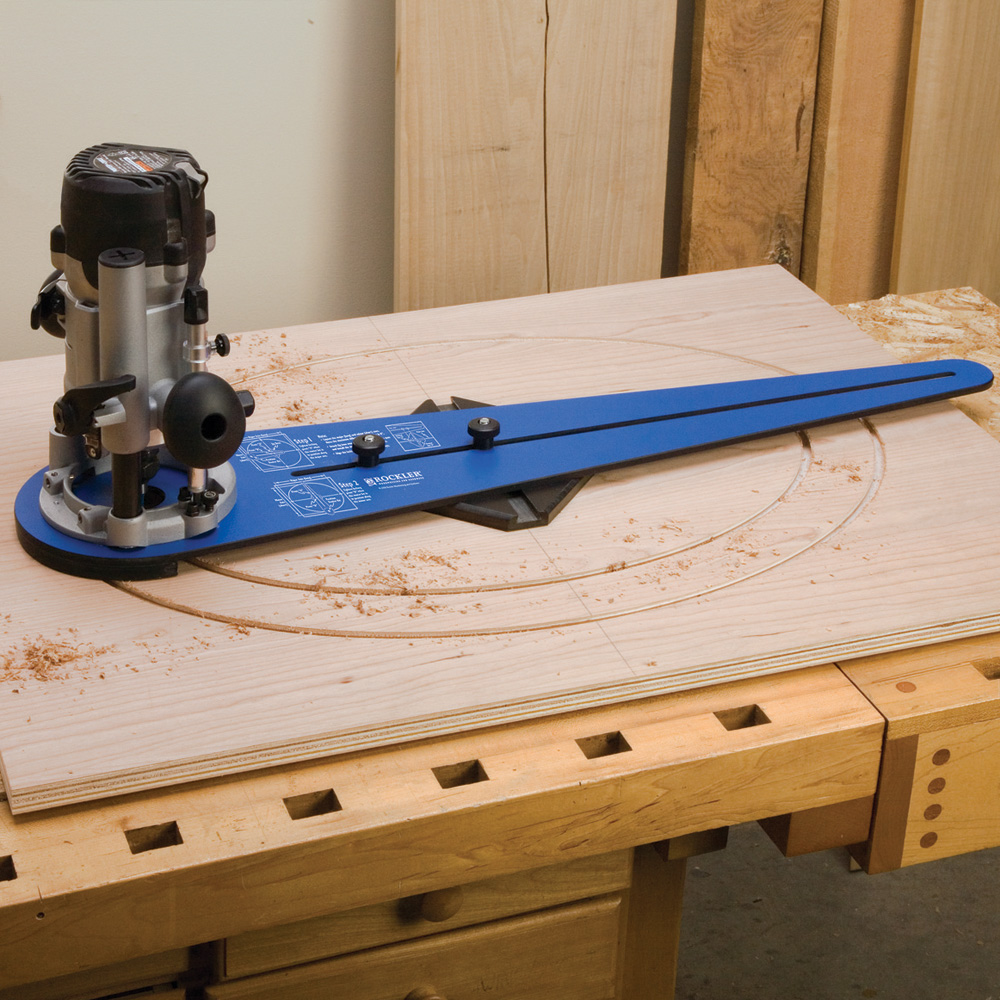

The Rockler Ellipse/Circle Router Jig lets you cut circles and ellipse shapes over a wide range of dimensions and proportions. With your router and this handy, easy-to-use jig, you'll be able to make picture frames, mirrors, signs, tabletops and more in just a matter of minutes. Set up takes only a couple of minutes and is virtually math-free. Using the jig is just as easy. As you move the router through the cut, the jig's sliding dovetail mechanism keeps the router precisely on the cut line. Designed for use with just about any plunge router.

Features:

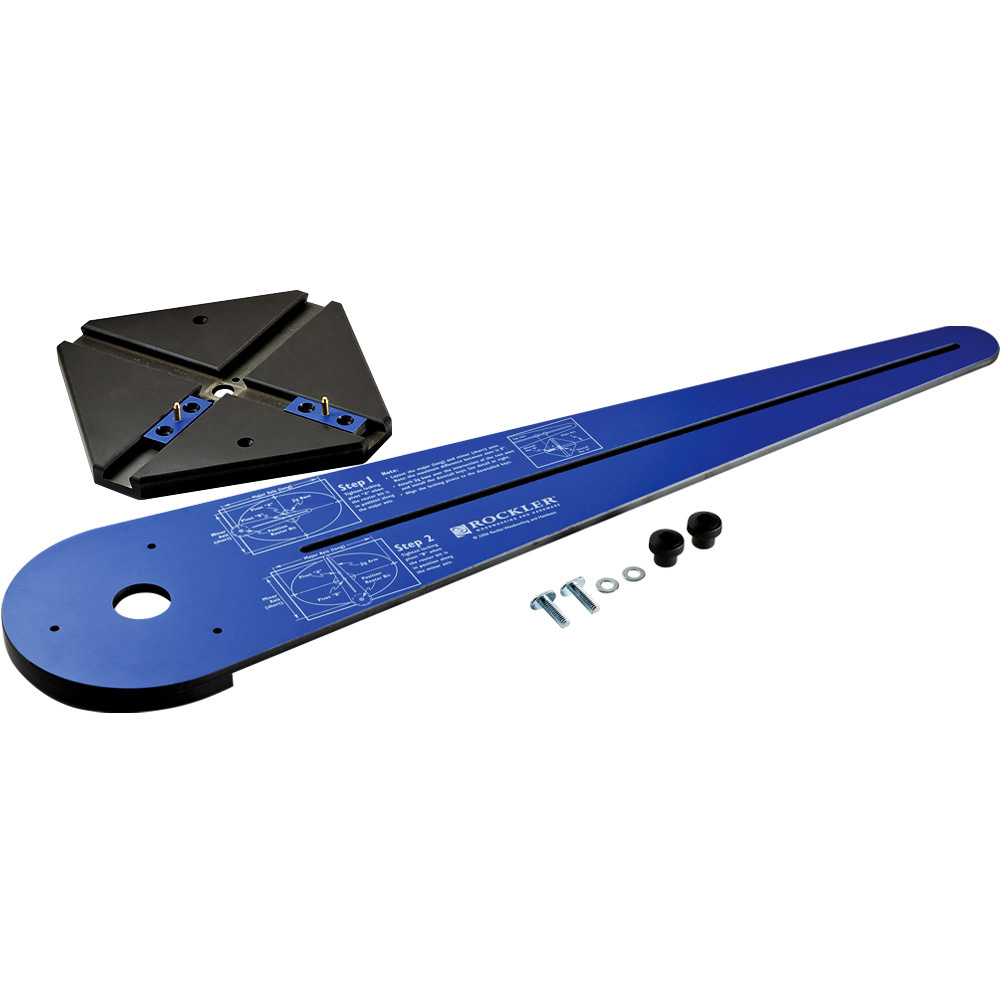

• Includes jig arm, jig base, two dovetail keys, and two locking pivots
• Single pivot can be locked to make circles up to 52" diameter
• Pre-drilled for many routers (see below); can also be drilled to fit most routers with a 6'' base

Pre-drilled for the following routers:

• Bosch MRC23 series
• Bosch 1617
• Bosch 1618
• DeWalt DW616
• DeWalt DW618
• Hitachi M12VC (fixed and kit)
• Makita 1100,
• Milwaukee 5615
• Milwaukee 5616
• Milwaukee 5624
• Porter-Cable 690 series
• Porter-Cable 890 series
• Porter-Cable 7529
• Porter-Cable 97529
• Porter-Cable 8529
• Ridgid 2930 combo kit

Important: If you plan to use this product with a Skil router, please download and use the Drilling Template in the Technical Documents section.

Note: When installing this jig on Bosch routers, remove the router baseplate to better accommodate the short length of the baseplate installation screws.
