Rockler Pro Lift Router Lift

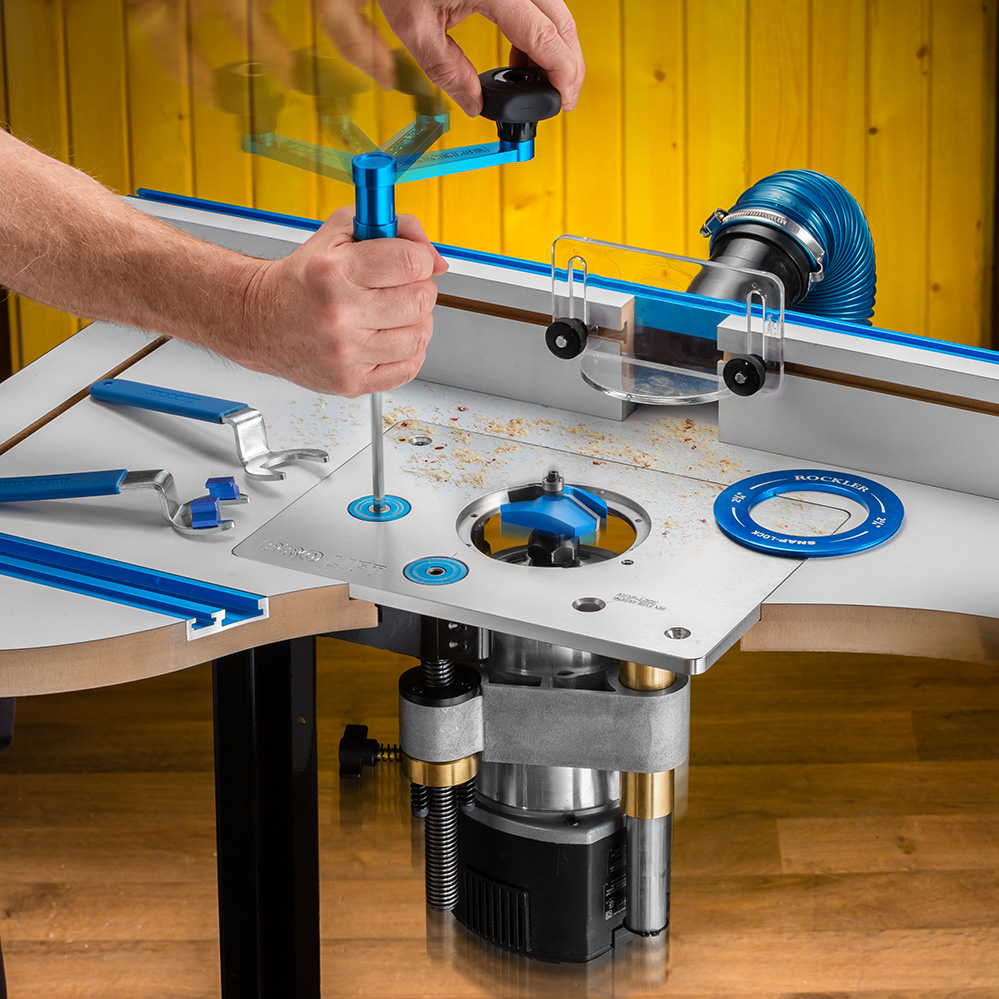

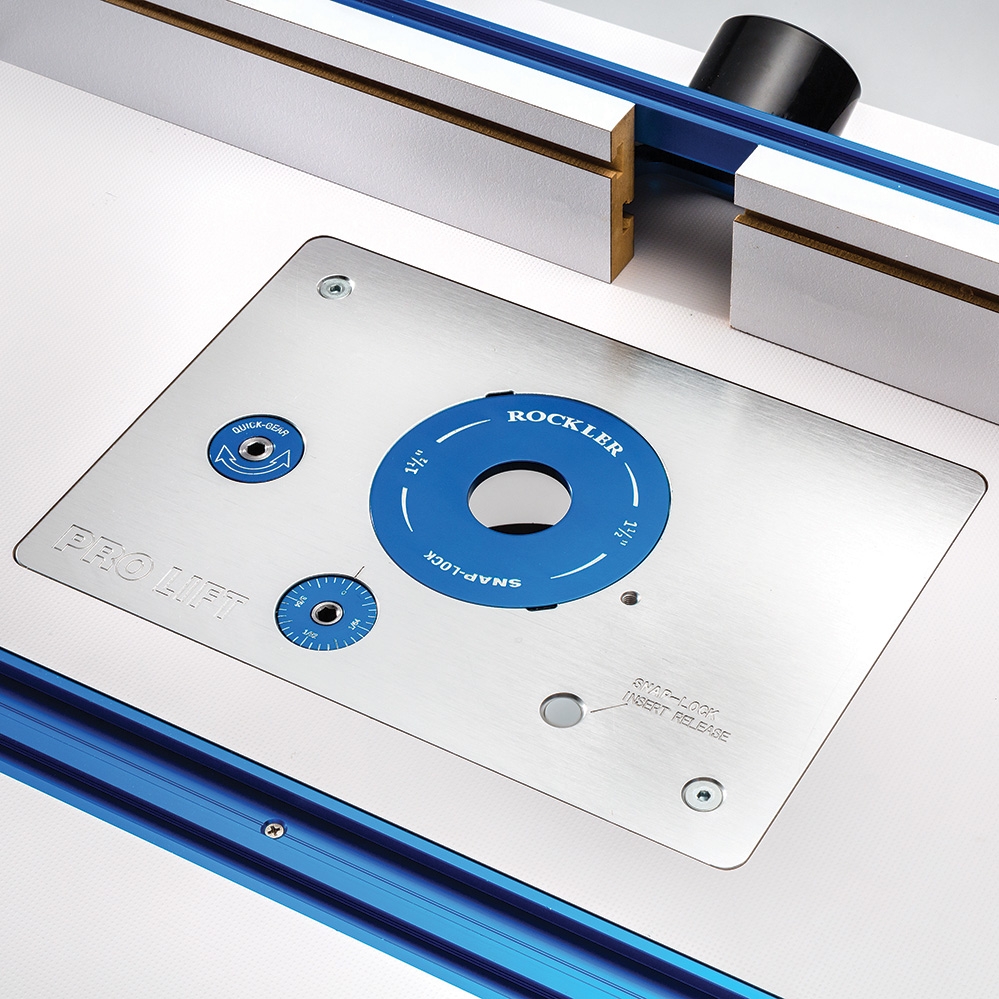

Two patented features raise the Rockler Pro Lift into a class of its own: ultra-fast ''Quick-Gear'' height adjustments and ''Snap-Lock'' tool-free insert ring changes. Push the button to release the insert ring, then wind the Quick-Gear to raise the bit above the table in just seconds. Once the bit is installed, quickly lower it, click in the insert ring, and use the fine adjustment gear to set the final height to within 0.001''. All this is achieved more quickly, more efficiently, and more intuitively with the Rockler Pro Lift. Raise your woodworking to a new level.

Choose from two plate sizes: For Rockler or Bench Dog router tables, choose #52429, which has a 8-1/4'' x 11-3/4'' plate. For Kreg, Jessum, Woodpecker and Peachtree tables, choose #55803, which has a 9-1/4''-11-3/4'' plate.

Features:

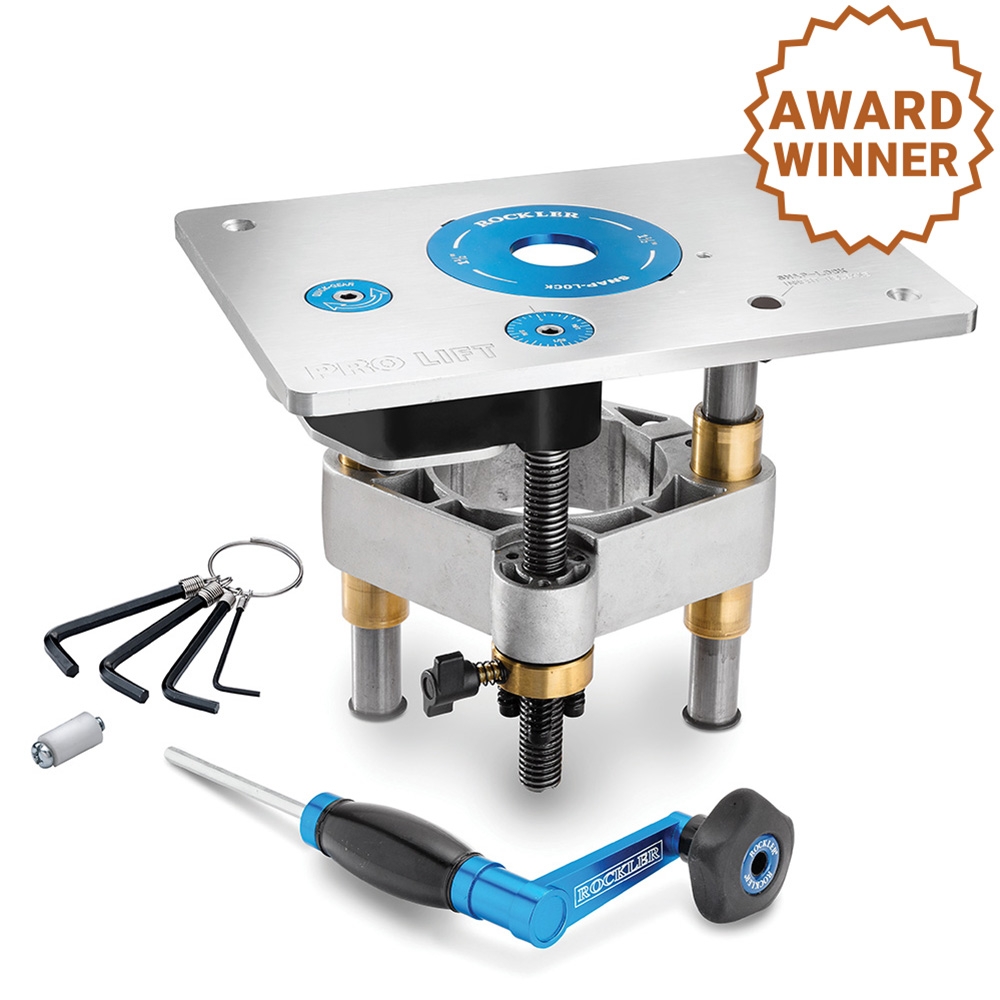

• 2018 Wood Magazine Innov8 Award winner

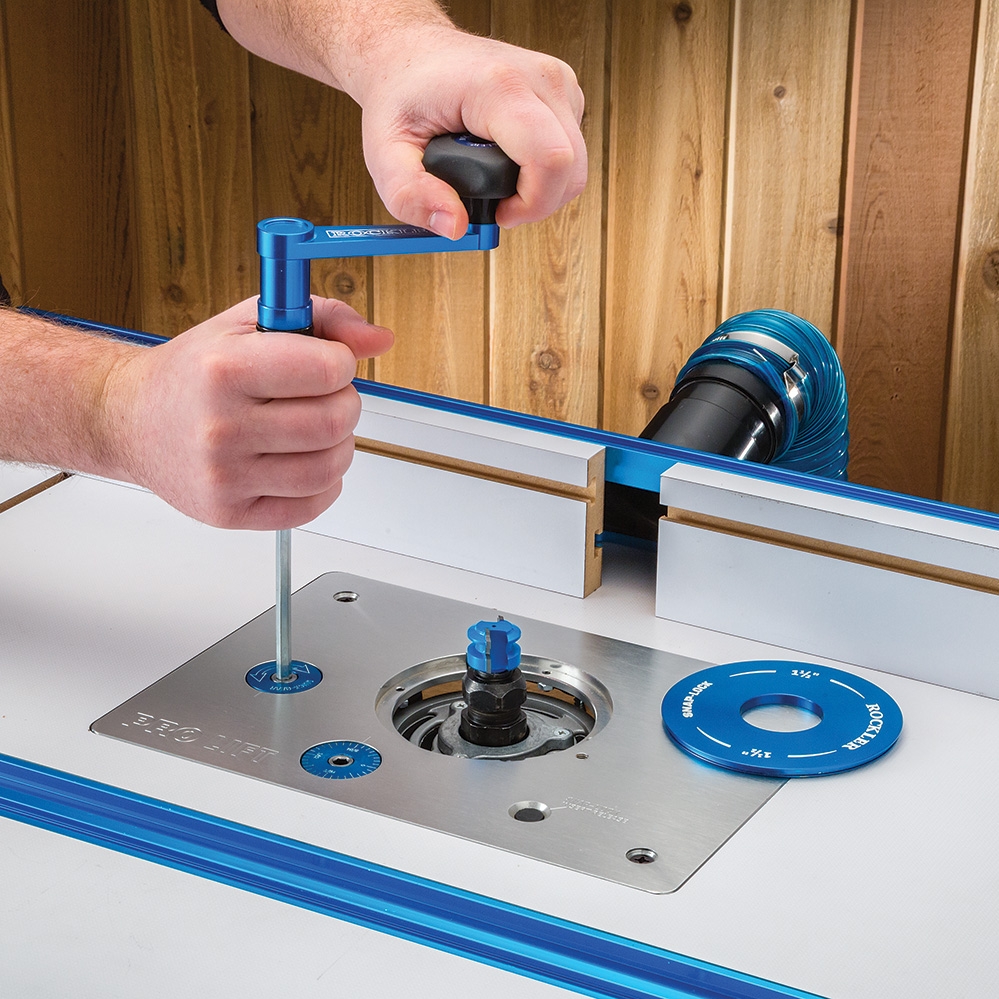

• Make height adjustments 4 times faster with the Quick-Gear 4-to-1 gear box ratio—dramatically speeds up your bit changes
• Use the precision gear to make adjustments to within 0.001''—one hex wrench for both gears

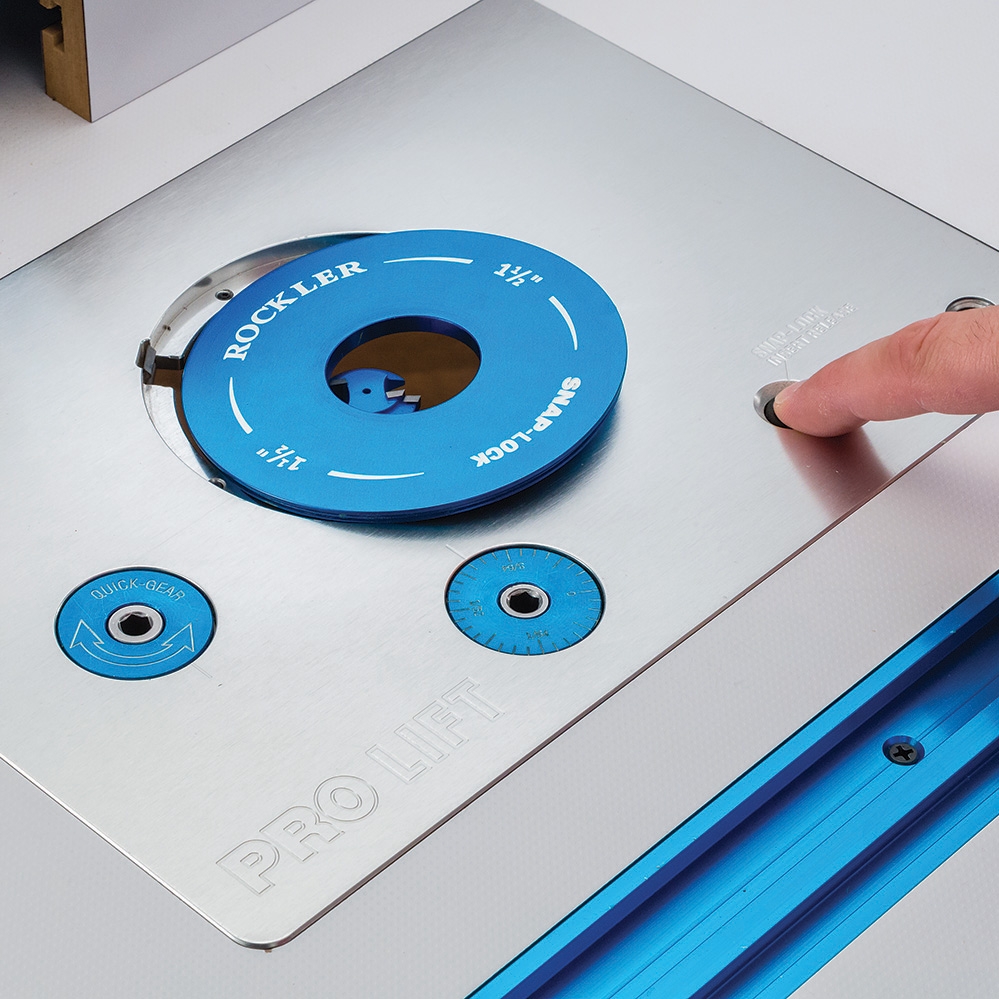

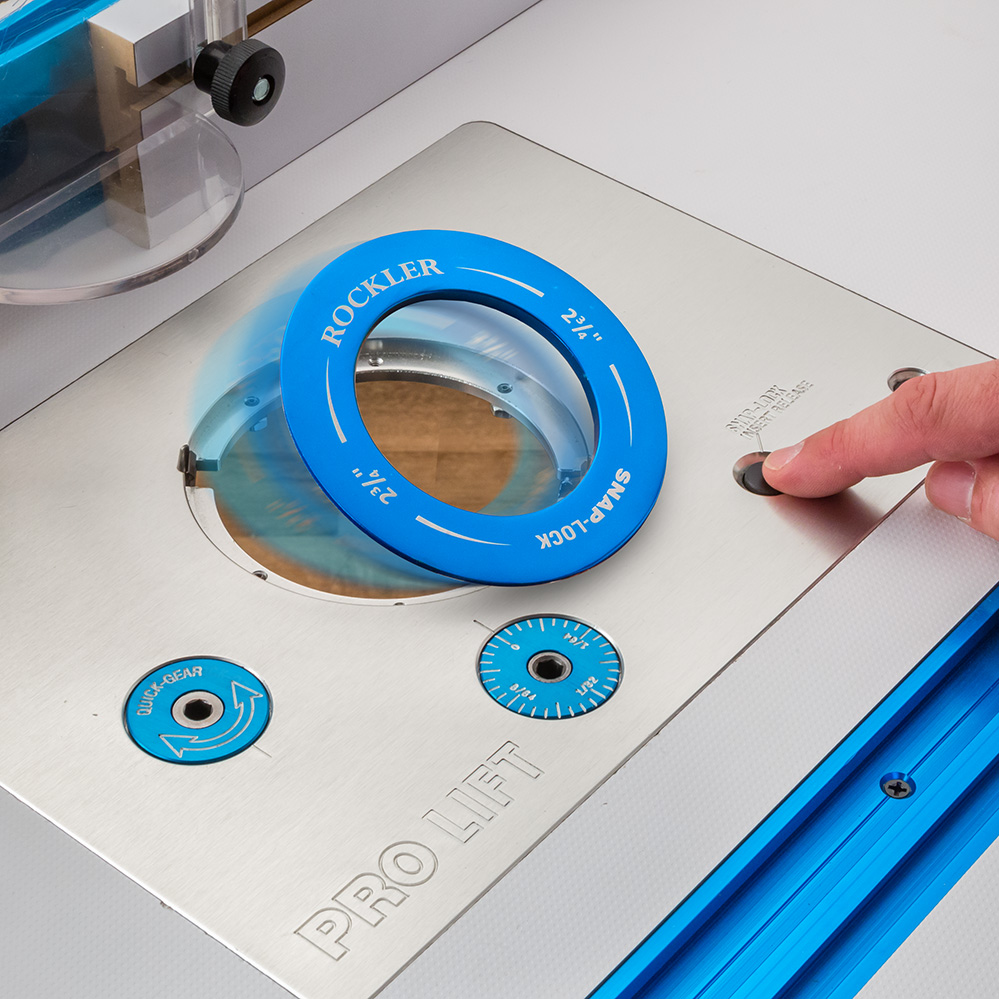

• Push the button to release the insert ring for fast bit changes—no tools to search for; no screws to lose
• Two expansion bars beneath the plate are adjustable for a perfect friction fit with the table

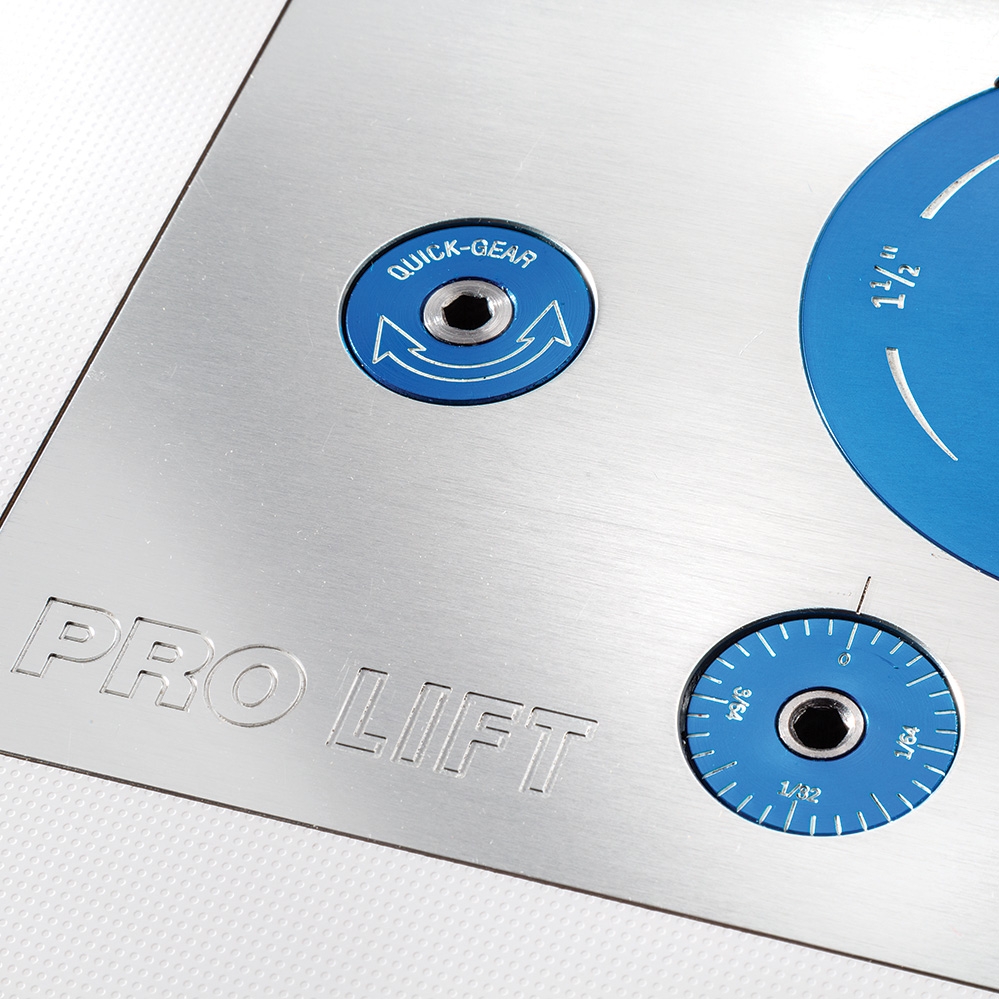

• Indexed marks on the fine adjustment screw let you raise the bit by a specific increment with the naked eye
• Anti-backlash mechanism keeps the router from creeping downward—lock knob provides further insurance when running very large jobs

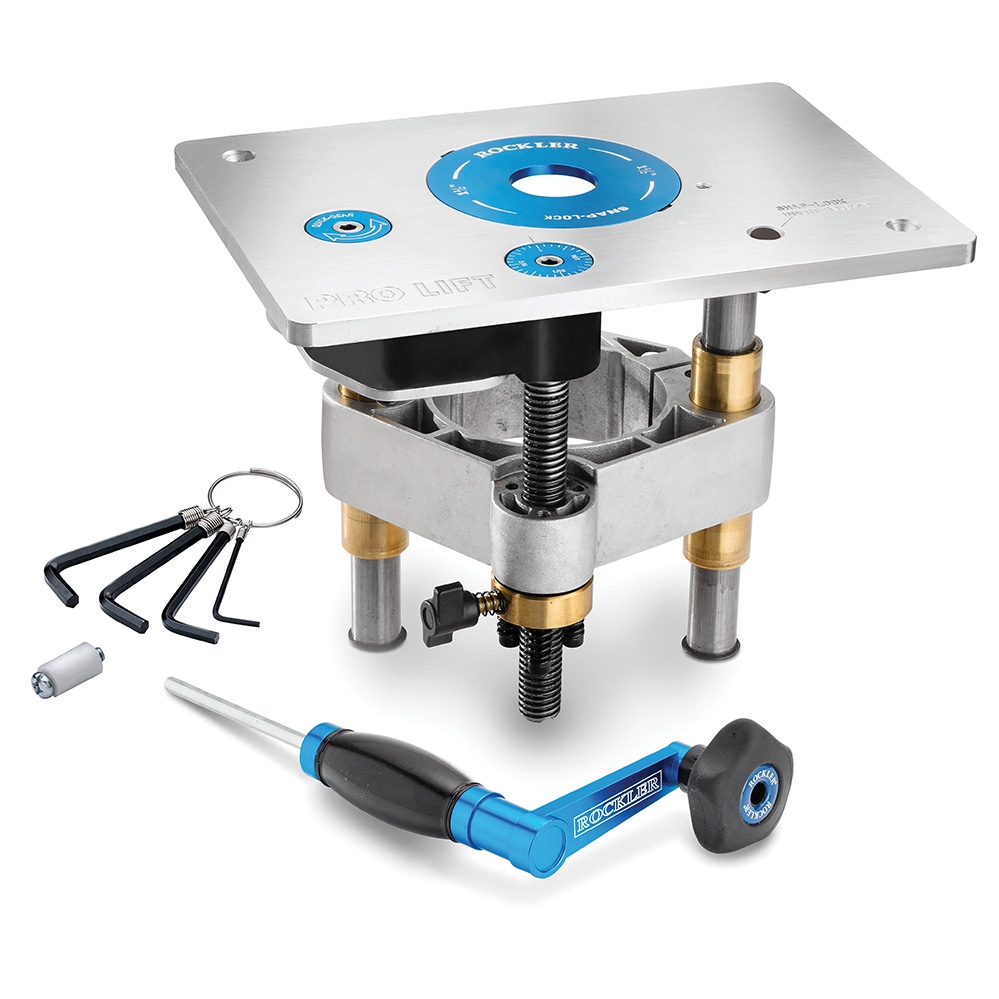

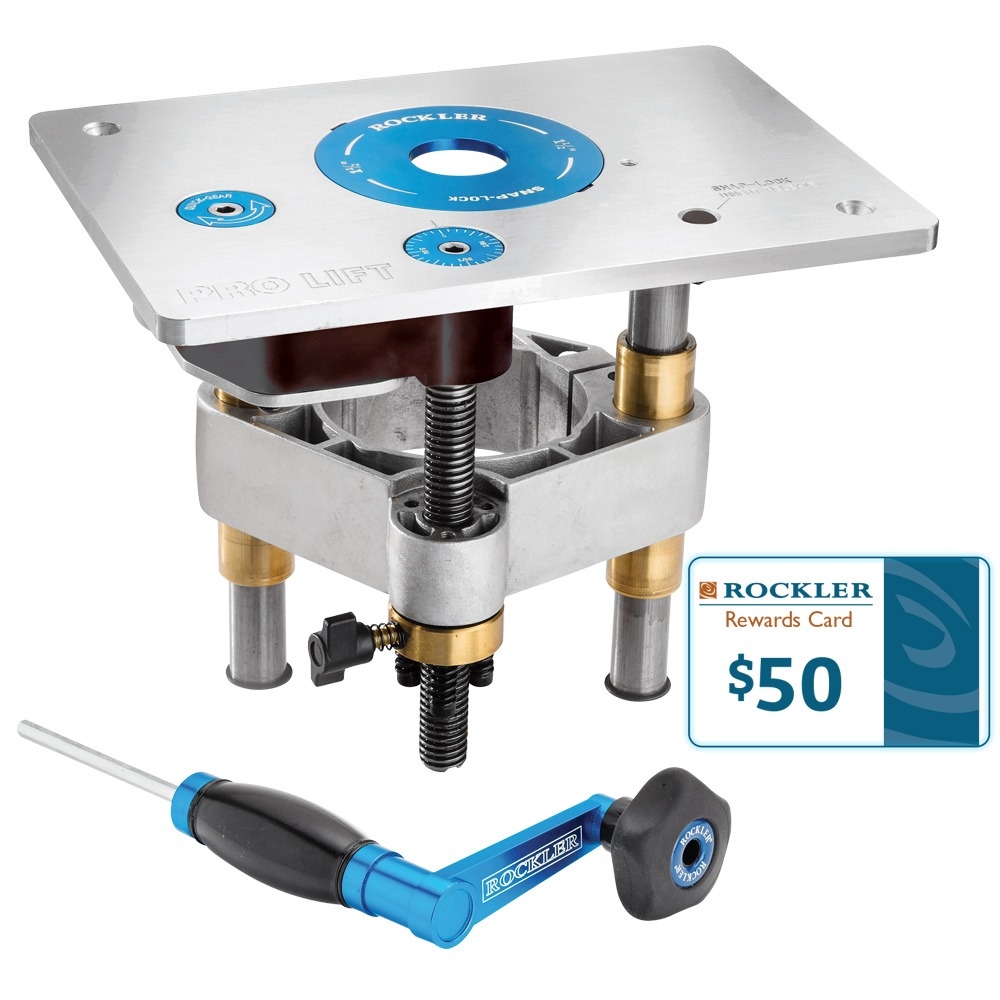

• 3/8'' thick machined aluminum plate and heavy-duty steel constructed guide posts with bronze bushings—designed for demanding daily use
• Includes one insert ring with a 1-1/2'' opening; additional inserts (e.g. #55415) and zero-clearance insert (#53878) sold separately

Will my router fit?

Without adapter collar, fits full-size router motors with a with a 4.2'' diameter (13.85'' circumference), including:

• Porter-Cable 7518
• Porter-Cable 7519

With 3-1/2'' Pro Lift Adapter Collar (#57022, sold separately), the circumference of a 3.5 inch diameter circle is approximately 10.996 inches including:

• Bosch 1617
• DeWalt DW616
• DeWalt DW618
• Porter-Cable 690 series
• Porter-Cable 890 series

Note: If you are unsure of your router motor's diameter, check the manual, or measure the circumference with a tailor's tape. Measuring the circumference is easier than measuring the diameter. The optional collar has an expansion gap, so it will accept motors measuring 1/8'' larger or smaller in diameter than the listed spec.
